The Conversational Firewall

UNpkl is an advanced DNS firewall that empowers administrators to manage network policies using plain English

Subscribe

Deploy

Control

Back of a network router with multiple Ethernet ports, including yellow ports, with Ethernet cables plugged in.
Access the partner portal ....

UNpkl Business Networking Solutions

Black Wi-Fi router with multiple antennas, ports, and 5G capability.

UNpkl T-28 WiFi7/5G/SFP Gateway

  • Wi-Fi 7

  • MT7988AV main chip, ARM Cortext-A 73 Quad-core CPU, main

    frequency up to 1.8G HZ

    Built-in high-speed 1GB DDR4 chip, with 128 MB SPI NAND Flash

    AP routing network NIC chip MT7996AV , the maximum wireless

    rate is up to 19000Mbps

    2.4G 5.8G 6G WIFI all come with 4 high-power FEMs to improve WIFI

    coverage

    1* 2.5Gbps WAN port, supports automatic flipping (Auto MDI/MDIX)

    3*1Gbps LAN port,support automatic flip (Auto MDI/MDIX)

    1 *10Gbps high-speed SFP optical port, which can be used to connect high-speed optical port switches and other devices

    External high-gain WIFI antenna, 360-degree wireless signal without

    blind spots

    Supports dual-mode dual-card 5G mobile communication function

    Supports SA/NSA network

    Supports "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode

    Supports "one-click" MESH networking

  • SFP 10Gbps

    Upto 3 Gbps

    MAX 19000Mbps

  • 2.4G WIFI baseband MT7976CN, supports IEEE 802.11n/g/b/ax/be, supports 40M bandwidth

    5.8G WIFI baseband MT7977BN , supports IEEE 802.11a/ac/ax/be, supports 160M bandwidth

    6G WIFI baseband MT7977AN , supports IEEE 802.11a/ac/ax/be, supports 320M bandwidth

  • Yes

  • Upto 2200 sq ft

  • Upto 4000 sq ft

  • Upto 6000 sq ft

  • Yes

  • iOS, Android and Standard Browser Support

  • 2.4G plus 5.8G dual-band antenna, 4 antennas

    6G WIFI antenna 4pcs,

    5G mobile is 4pcs

  • Yes

  • 3

  • 2

  • Yes

  • Works with all internet service providers, such as AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.( a modem is required for most internet service providers)

Connect with us
Disassembled smoke detector with internal components exposed, including circuit board, sensors, and mounting parts.

UNpkl C-01 AC + AP POE

  • Wi-Fi 6

  • Main Chipset: MT7981B

    ARM Cotext-A53

    Dual Core CPU

    1.3GHz Frequency,

    WIFI Chipset MT7976CN

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / otal 2975Mbps

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / otal 2975Mbps

  • Yes

  • Upto 2200 sq ft

  • Upto 4000 sq ft

  • Upto 6000 sq ft

  • Yes

  • Yes

  • 4*Internal FPC Antennas

  • Yes

  • 1 POE

  • 1 POE

  • Yes

  • Works with all internet service providers, such as AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.( a modem is required for most internet service providers)

Connect with us
Three white network wall mount boxes with black Ethernet ports, two smaller on the sides and one larger in the center

UNpkl W-01 AC + AP POE

  • Wi-Fi 6

  • Main Chipset: MT7981B

    ARM Cotext-A53

    Dual Core CPU

    1.3GHz Frequency, WIFI Chipset MT7976CN

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / otal 2975Mbps

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / otal 2975Mbps

  • Yes

  • Upto 2200 sq ft

  • Upto 4000 sq ft

  • Upto 6000 sq ft

  • Yes

  • Yes

  • 4*Internal FPC Antennas

  • iOS, Android and Standard Browser Support

  • 1 POE

  • 1 POE

  • Yes

  • Works with all internet service providers, such as AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.( a modem is required for most internet service providers)

Connect with us
Industrial communication controller with multiple Ethernet ports and power/reset buttons.

UNpkl S-8-4 Industrial L2+ Managed PoE Switch

  • IDSL3LM-04X08GP-AU-Z7 is a 4-port 10G optical & 8-port 10/100/1000Base-T L2+ managed industrial PoE switch. It features high/low temperature resistance and lightning protection through a fan-less heat dissipation design. With a wide operating temperature range and high protection level, it ensures excellent industrial-grade quality. The switch integrates various protocols for switching and security, and supports Ethernet Ring Protection Switching (ERPS) for enhanced networking flexibility and reliability.

    • Input Voltage: DC18-58V(non-PoE), DC48-58V(PoE)

    • Operating Temperature: -40℃ ~ +75℃

    • Shell: IP40 protection, fan-less design

    • Test Report: CE, RoHS, FCC

    • Anti-static: 8KV-15KV

    • MTBF: 100000 Hours

  • Provider Mode Ports

    Fixed Port

    • 8x10/100/1000M RJ45, 4x10G SFP+

    Management Port

    • Support console, USB

    Power Interface

    • Phoenix terminal, dual power redundancy

    LED Indicators

    • PWR, Link/ACT LED

  • Twisted-pair

    • 0-100m (CAT5e, CAT6)

    Single Mode Optical Fiber

    • 20/40/60/80/100KM

    Multimode Optical Fiber

    • 550m

  • Input Voltage

    • DC18-58V(non-PoE), DC48-58V(PoE)

    Total Power Consumption

    • Full load <20W(non-PoE), Full load <260W(PoE)

Connect with us
Network switch with multiple Ethernet ports, USB port, and indicator lights

UNpkl S-24-4 Layer3 Managed Switch

  • CSL3R-04X24GP-U-Z400w is a high-performance Layer 3 managed switch featuring 4×10G SFP+ uplinks and 24×10/100/1000Base-T ports with PoE+ support up to 400w. Designed for enterprise and campus networks, it delivers advanced routing, seamless scalability, and reliable power for IP cameras, APs, and other powered devices.

    • Transfer data for network surveillance cameras

    • 24 x 10/100/1000Mbps RJ45 Ports PoE+, 4 x 10G SFP+ Ports, 1 x Console Port , 1x USB port

    • Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, store-and-forward

    • Ethernet port supports 10/100/1000M adaptive and PoE functions

    • Panel indicator monitoring the status and help failure analysis

    • Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication

    • DOS attack defense settings, ACL settings

    • Support WEB, TELNET, CLI, SSH, SNMP, RMON management

    • Lightning Protection Surge: General Mode 4KV, Differential Mode 2KV, ESD 15KV

  • Fixed Port

    • 4*1G/10G Base-X+24*10/100/1000 Base－T

    Management Port

    • Support console

    Power Interface

    • 220VAC Interface

    LED Indicators

    • PWR, SYS, Link/ACT LED

  • Twisted-pair

    • 0-100m (CAT5e, CAT6)

    Single Mode Optical Fiber

    • 20/40/60/80/100KM

    Multi Mode Optical Fiber

    • 550mn

  • Input Voltage

    • AC 100-240V 50/60Hz

    Total Power Consumption

    • ≤400w

Connect with us

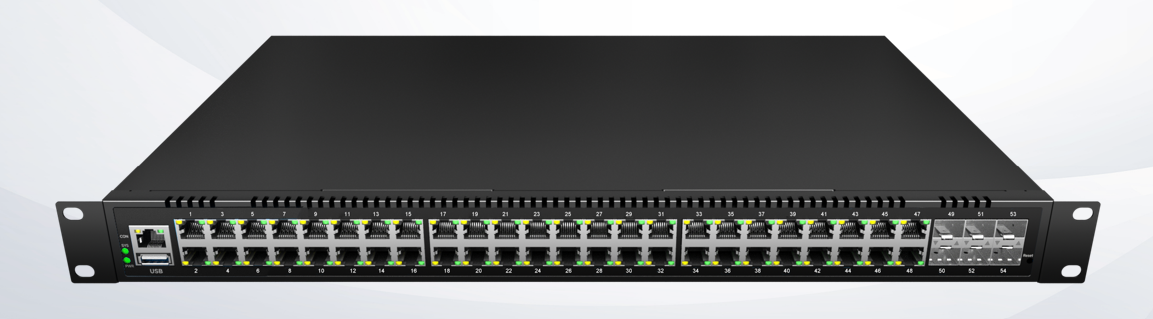

A 48-port network switch or patch panel with Ethernet ports, LED indicator lights, and control buttons, black metal case, mounted on a rack.

UNpkl S-48-6 L3 Managed PoE Switch

  • The CSL3R-06X48GP-U-Z, a powerful Layer3 Managed Switch, comes with 48 RJ45 ports offering 10/100/1000Mbps auto - negotiation and 6 1/10G SFP+ ports. Its RJ45 ports support auto - MDI/MDIX and wire-speed forwarding for efficient data transfer. Employing the store - and - forward method along with QoS technology, it ensures rational bandwidth allocation per port.

    • Transfer data for network surveillance cameras

    • 48 x 10/100/1000Mbps RJ45 Ports PoE+, 6 x 10G SFP+ Ports, 1 x Console Port, 1x USB port

    • Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, store-and-forward

    • Ethernet port supports 10/100/1000M adaptive and PoE functions

    • Panel indicator monitoring the status and help failure analysis

    • Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication

    • DOS attack defense settings, ACL settings

    • Support WEB, TELNET, CLI, SSH, SNMP, RMON management

    • Lightning Protection Surge: General Mode 4KV, Differential Mode 2KV, ESD 15KV

  • Fixed Port

    • 6*1G/10G Base-X+48*10/100/1000 Base－T

    Management Port

    • Support console

    Power Interface

    • 220VAC Interface

    LED Indicators

    • PWR, SYS, Link/ACT LED

  • Twisted-pair

    • 0-100m (CAT5e, CAT6)

    Single Mode Optical Fiber

    • 20/40/60/80/100KM

  • Input Voltage

    • AC 100-240V 50/60Hz

    Total Power Consumption

    • ≤400w

Connect with us

UNpkl S-24-10 Layer 3 Unmanaged PoE Switch

  • RTL8382L+8218D 24*10/100/1000Base-TX +2*1000Base-X SFP

Connect with us

UNpkl S-24-10 Layer 3 Unmanaged PoE Switch

  • RTL8382L+2*8218D,300W 24*10/100/1000Base-TX POE +2*1000Base-X SFP

Connect with us

UNpkl S-16-10 Layer 3 Unmanaged PoE Switch

  • RTL8367S*4,300W 16*10/100/1000Base-TX POE+2*1000Base-X SFP

Connect with us

UNpkl O-01 AC + AP Outdoor POE

  • Wi-Fi 6

  • Main Chipset: MT7981B

    ARM Cotext-A53 Dual Core CPU

    1.3GHz Frequency

    WIFI Chipset MT7976CN

  • Upto 3 Gbps

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / otal 2975Mbps

  • Yes

  • Upto 2200 sq ft

  • Upto 4000 sq ft

  • Upto 6000 sq ft

  • Yes

  • iOS, Android and Standard Browser Support

  • 4*Detachable N port Antennas

  • Yes

  • 3

  • 1

  • Yes

  • Works with all internet service providers, such as AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.( a modem is required for most internet service providers)

Connect with us

UNpkl UN-26 Wi-Fi 6 Mesh Router

  • Wi-Fi 6

  • Main Chipset: MT7981B

    ARM Cotext-A53 Dual Core CPU

    1.3GHz Frequency

    WIFI Chipset MT7976CN

  • Upto 3 Gbps

  • 2.4GHz MAX 573Mbps 5.8GHz MAX 2402Mbps / total 2975Mbps

  • Yes

  • Upto 2200 sq ft

  • Upto 4000 sq ft

  • Upto 6000 sq ft

  • Yes

  • iOS, Android and Standard Browser Support

  • 4*internal FPC antennas

  • Yes

  • 3

  • 1

  • Yes

  • Works with all internet service providers, such as AT&T, Verizon, Xfinity, Spectrum, RCN, Cox, CenturyLink, Frontier, etc.( a modem is required for most internet service providers)

Connect with us
